Quick release undertrays...

Post by Rich H » Sat Mar 06, 2010 8:02 pm

Hey all, I fitted Dzus half turn D rings today to the undertray as I hate spending ages undoing all the little bolts!

Not a kit for the Elise (For an aprillia I think?) but had panel captive nut things and DZ1 rings. Only the very front sill bolts can't easily be swapped out as the chassis is in the way. The rest was fairly straight forward. The side ones you have to undo a few bolts form the shear panel to get them in and the rearmost outer 2 needed slight fettling to move the clips inboard by 3mm or so, 30 seconds with a round file. I fitted them with 20mm washers on the outside for most of them and 12mm washers between the tray to tray joint to space them out a bit.

Just 2 5mm bolts and the 4 8mm bolts then 14 half turns and all the trays are off!

Been for a blatt and they are still attached! Even fixed the handbrake cable rattle.... :thumbsup

Total cost - £25 for the kit and £2 for new washers

Will let you know how they weather....

Rich
Last edited by Rich H on Mon Mar 08, 2010 2:57 pm, edited 1 time in total.
1994 Lotus Esprit S4 - Work in progress
1980 Porsche 924 Turbo - Funky Interior Spec
2004 Smart Roadster Coupe - Hers

User avatar
Mikie711
Posts: 4352
Joined: Mon Sep 10, 2007 11:21 pm
Location: Aberdeenshire.
Contact:

Re: Quick release undertrays...

Post by Mikie711 » Sat Mar 06, 2010 11:06 pm

Been thinking of doing the same thing, removing all those little bolts is a constant PITA especially if your a tinkerer like me. Where did you get them from?
Elise S2 260
Audi RS3
RRS HST
Triumph Trident 660
Triumph Speed Triple 1200RX

User avatar
BiggestNizzy
Posts: 8932
Joined: Sun May 27, 2007 6:47 pm
Location: Kilmarnock
Contact:

Re: Quick release undertrays...

Post by BiggestNizzy » Sun Mar 07, 2010 8:13 am

You got a picture / link this sounds interesting
Sent from my ZX SPECTRUM +2A

User avatar
Rich H
Posts: 9314
Joined: Sun Jul 31, 2005 10:11 pm
Location: Preston

Re: Quick release undertrays...

Post by Rich H » Sun Mar 07, 2010 10:12 am

http://cgi.ebay.co.uk/ws/eBayISAPI.dll? ... K:MEWNX:IT
Kit has 14 fasteners, the undertrays have 16 bolts but the front 2 clips won't fit. They could be made to by moving them back about 5mm
I figured A: I only had 14 anyway and B: at least some of the tray will still be attached if they all fall out...
Pics to follow.
1994 Lotus Esprit S4 - Work in progress
1980 Porsche 924 Turbo - Funky Interior Spec
2004 Smart Roadster Coupe - Hers

User avatar
neil
Posts: 3261
Joined: Fri Apr 06, 2007 1:55 pm
Location: Aberdeen

Re: Quick release undertrays...

Post by neil » Sun Mar 07, 2010 1:06 pm

I've been thinking about doing similar and had looked at the Eliseparts kit but my inner pikey stopped me from parting with the fifty odd quid.
Exige V6

User avatar
BiggestNizzy
Posts: 8932
Joined: Sun May 27, 2007 6:47 pm
Location: Kilmarnock
Contact:

Re: Quick release undertrays...

Post by BiggestNizzy » Sun Mar 07, 2010 1:09 pm

I have the eliseparts kit but the dzus stuff looks better
Sent from my ZX SPECTRUM +2A

User avatar
Rich H
Posts: 9314
Joined: Sun Jul 31, 2005 10:11 pm
Location: Preston

Re: Quick release undertrays...

Post by Rich H » Sun Mar 07, 2010 8:48 pm

I looked at the E-P kit but I didn't like the idea of R clips holding the trays on!

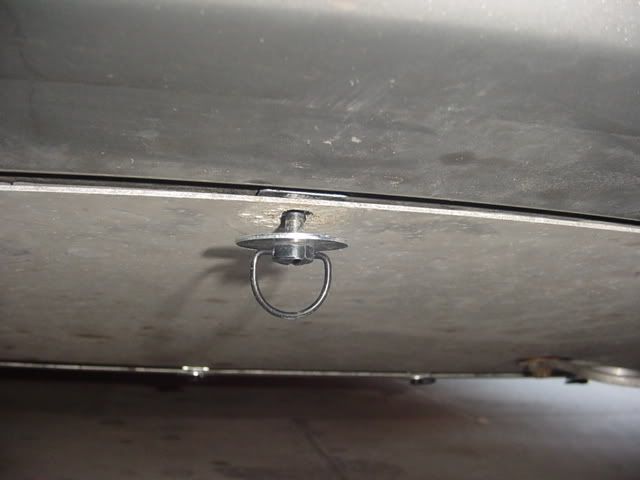

Closed

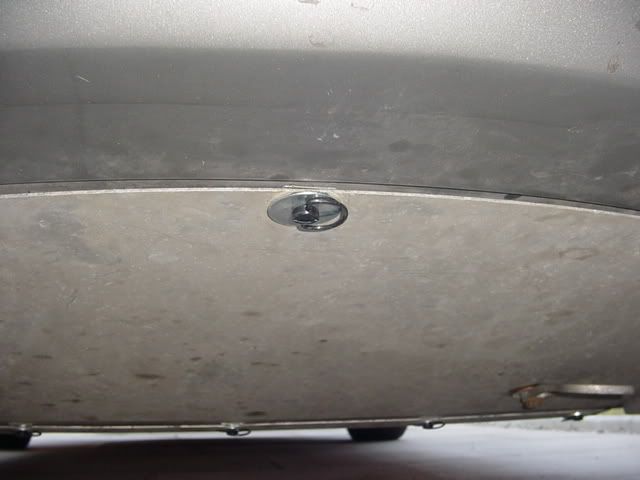

Open

They are not very well retained but not a problem when compared with the fiddly little bolts.
1994 Lotus Esprit S4 - Work in progress
1980 Porsche 924 Turbo - Funky Interior Spec
2004 Smart Roadster Coupe - Hers

User avatar
BiggestNizzy
Posts: 8932
Joined: Sun May 27, 2007 6:47 pm
Location: Kilmarnock
Contact:

Re: Quick release undertrays...

Post by BiggestNizzy » Fri May 14, 2010 4:15 pm

How is this holding up ?
Sent from my ZX SPECTRUM +2A

User avatar
Rich H
Posts: 9314
Joined: Sun Jul 31, 2005 10:11 pm
Location: Preston

Re: Quick release undertrays...

Post by Rich H » Fri May 14, 2010 7:08 pm

Still all there :thumbsup
1994 Lotus Esprit S4 - Work in progress
1980 Porsche 924 Turbo - Funky Interior Spec
2004 Smart Roadster Coupe - Hers

User avatar
BiggestNizzy
Posts: 8932
Joined: Sun May 27, 2007 6:47 pm
Location: Kilmarnock
Contact:

Re: Quick release undertrays...

Post by BiggestNizzy » Sat May 15, 2010 8:01 am

Ordered :thumbsup

Although nearly bought thousands of the things as the guy you bought them from is selling them all as a job lot.
Sent from my ZX SPECTRUM +2A
